Ritec

STI was founded as Sales Technology Inc. and created Condition Monitoring Custom Products (CMCP) to bring more low cost solutions to our customers while providing the flexibility required in todays competitive market. We changed our name to STI Vibration Monitoring Inc. to better reflect our mission. Our products are manufactured in the USA in Texas and Nevada.
STI specializes in low cost alternatives to Rack Based Monitoring Systems, by bringing single channel transmitters and monitors into the market. By creating a monitoring system based on single channels, the costs of machine protection systems are now much more affordable.
STI Vibration Monitoring Inc. is an ISO 9001:2015 Certified Company.

STI Company Introduction

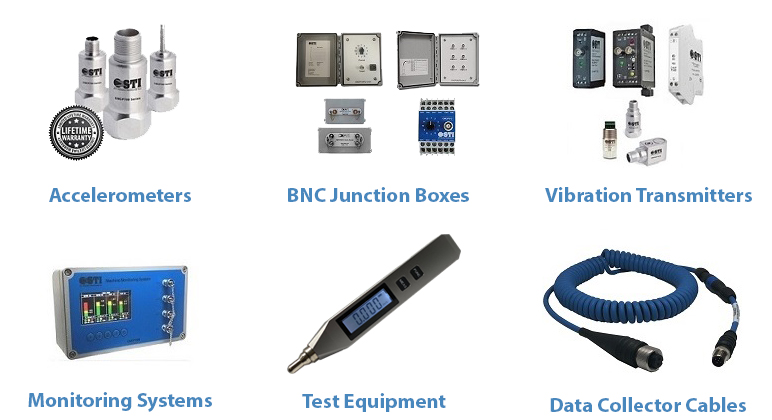

STI Products

  • Accelerometers

  • Mounting Hardware

  • Extension Cables

  • BNC Junction Boxes

  • Vibration Transmitters

  • Vibration Switches

  • Monitoring Systems

  • Test Equipment

  • Buffer Modules

  • Tachometers

  • Rotorkits

  • Proximity Probe Mounting

  • Balancing

  • Temperature

  • Data Collector Cables

  • Cable Reduction Boxes


...
Detailed Products Overview & Datasheets

More Information
Ritec

STI Products Overview & Datasheets

CMCP700S-CVT Case Vibration and Temperature Transmitter

  • Three Output
  • 4-20mA Output for Vibration (Acceleration or Velocity)
  • 4-20mA Output for Temperature
  • Buffered Sensor Output (AC Signal)
  • Selectable Low Pass Filter
  • Selectable Full Scale Range
  • Selectable English or Metric Units
  • Din Rail Mountable
  • Slimline, 12.5mm wide Housing
  • Download Datasheet (PDF)»

CMCP300B Four Channel Passive Buffer Module

  • Four Channel Device
  • Three Outputs Per Channel
  • Compatible with Accelerometers, Eddy Probes and +/-24VDC Powered Sensors
  • BNC Buffered Output Per Channel
  • Two Buffered Outputs via Terminal Block Per Input
  • Onboard Sensor Power
  • +24V or -24VDC Power Supply Capability
  • OK Power Indicator
  • Din Rail Mountable
  • Download Datasheet (PDF)»

CMCP1300ST-T Low Cost Triax with Temperature

  • Low Cost Triaxial Accelerometer with Temperature
  • Side Exit, 5 Pin M12 Connector
  • 100 mV/g Per Axis
  • 10 mV/°C Temperature Output
  • 0.32 Hz to 10 kHz (19.2 to 900k cpm)
  • -65 to +185 °F (-54 to +85 °C)
  • 1/4-28 UNF or M8x1.25 Mounting Bolt
  • 316 Stainless Steel Case
  • Download Datasheet (PDF)»

CMCP801QD Quick Disconnect Proximity Probe Holder

  • Meets API 670 External Mounting Specifications
  • Quick Disconnect Coupling
  • Removal without Re-Gapping
  • Fits 4 Probe Sizes
  • IP66 Rated, NEMA 4 Raintight
  • 316 Stainless Steel Probe Holder
  • Explosionproof Cast Aluminum Housing
  • Four 3/4" NPT Conduit Hubs
  • Download Datasheet (PDF)»

CMCP310PSB Portable Switch Box

  • Accepts up to 8 Inputs
  • BNC or Pluggable Terminal Block Inputs
  • BNC Output with Selector Switch
  • Lightweight Anodized Aluminum Housing
  • Compact and Portable
  • Increases Data Collection Time
  • 4.4"x4.2"x2.0" (111x106x50mm)
  • Download Datasheet (PDF)»

CMCP601R Portable Reciprocating Compressor Kit

  • The CMCP601R Battery Powered Mini Reciprocating Compressor kit which is designed for easy transport and use. The CMCP601R is designed to demonstrate vibration monitoring techniques used on Reciprocating Machinery. The CMCP601R can be fully equipped with accelerometers and proximity probes to demonstrate motor, gear, crosshead, rod drop, rod runout and cylinder vibration monitoring.
  • Download Datasheet (PDF)»

CMCP420VT-T/Ex IECEx/ATEX Approved 4-20mA Dual Output Vibration and Temperature Output

  • IECEx and ATEX Approved (Exd)
  • Dual Output Vibration and Temperature
  • 4-20mA Velocity Output
  • 4-20mA Temperature Output
  • 2 to 2,000 Hz (120 to 120kcpm)
  • Two Ranges Available
  • Flameproof Connection Head Included
  • RoHS Compliant
  • Download Datasheet (PDF)»

CMCP420VT/Ex IECEx/ATEX Approved Loop-Powered Vibration Velocity Transmitter with Dynamic Output

  • IECEx and ATEX Approved (Exd)
  • 4-20mA Velocity Output
  • 100mV/g Dynamic Output
  • 2 to 2,000 Hz (120 to 120kcpm)
  • Two Ranges Available
  • Flameproof Connection Head Included
  • RoHS Compliant
  • Download Datasheet (PDF)»

CMCP630VP Portable Vibration Pen

  • Quick and Easy to Setup and Use
  • Backlit LCD Display for Low Light Conditions
  • Lightweight, Compact and Ergonomically Designed Case
  • Velocity, Acceleration and Displacement Measurements
  • Peak Hold Function
  • Hand Pressure
  • 30 Hour Battery Life (Continuous Use)
  • Rechargeable Battery
  • Conforms to ISO2372
  • Lanyard, Travel Case, Charger, Storage Bag and ISO 10816-1 Severity Chart Included
  • Download Datasheet (PDF)»

CMCP-TKPW-KIT Pocket Wobulator Test Kit

  • Compact, Battery Powered Wobulator
  • Compact Static Calibrator Included
  • For Use with Proximity Probe Systems
  • 4140 Steel Wobble Plate
  • 0-15 mil (0-381um) Dynamic Range
  • Collets for English and Metric Probe Sizes
  • Precision Dial Indicator
  • Variable Speed (0-7,000 RPM)
  • Tachometer and Key Phase Notch for Speed Probes
  • Includes Travel Case, Battery Pack, Charger and Mounting Magnet
  • Download Datasheet (PDF)»

CMCP300P Sensor Power and Interface Module

  • Accepts up to Four Sensors
  • NC Signal Outputs
  • Simultaneous Connection of Accelerometers, Proximity Probes and DC Sensors
  • Onboard Constant Current Power for IEPE Sensors
  • Dual Power Supply Capabiity (+24V and -24V Operation)
  • Screw Terminals
  • Compact Design
  • Optional Battery Pack for Portable Use
  • Optional Din Rail Mounting Plate
  • Optional Din Rail Mounted Power Supply
  • Download Datasheet (PDF)»

CMCP601M Mini Battery Powered Rotor Kit

  • The CMCP601M Battery Powered Mini Rotor Kit is designed for easy transport, setup, and use. With a long battery life of 10+ hours, it makes it easy to demonstrate and train in the use vibration sensors such as Proximity Probes, Accelerometers and Velocity Sensors using Vibration Analyzers or other Monitoring Systems. To extend runtime the charger may be used concurrently with the battery.
  • Download Datasheet (PDF)»

CMCP-TKPC QuickClick Pocket Calibrator

  • Verify Proximity Probe Calibration
  • Small Portable 1.5” Dia. x 3.5” (38 x 89 mm)
  • 4 Sizes of Collets ¼”, 3/8”, M8 and M10
  • 4140 Steel, 0.938“ (24 mm) Dia. Target
  • Table or Magnetic Mount
  • Hard Carrying Case
  • Fits in your Briefcase or Backpack
  • English or Metric Micrometer
  • 5 mil or 0.1mm Quick Click
  • Download Datasheet (PDF)»

CMCP797-2 Two Channel Active Buffer Module

  • Two Inputs / 6 Outputs
  • Accepts Proximity Probes, Accelerometer or Velocity Sensors
  • BNC Buffered Output Per Sensor Input
  • Two Hardwired Buffered Outputs Per Input
  • 0 to 150kHz Frequency Range
  • +/- 24VDC Powered
  • Power “On” LED
  • Din Rail Mounted
  • Front Terminal or TBus® Power Wiring
  • Universal Input (Accels/proximity)
  • Download Datasheet (PDF)»

CMCP300E BNC Interface Module

  • Four Differential Inputs
  • Four Isolated Outputs
  • Din Rail Mounted (TS35 and TS32)
  • Screw Terminals
  • Compact Design
  • Low Cost
  • Download Datasheet (PDF)»

CMCP7504 Four Channel Machinery Monitoring System

  • Compact Four Channel Monitoring System
  • 4.3" LCD Bar Graph Display with Alarm Indicators
  • ModBus RS-485 Output
  • API 670 Compliant
  • Individual OK, Alert and Danger Relay Outputs
  • Isolated 4-20mA Outputs
  • Local BNC Buffered Outputs
  • Configurable via USB
  • IP65 Housing with Cord Grips
  • AC or DC Powered
  • Download Datasheet (PDF)»

CMCP760TT Triaxial Accelerometer with Temperature Output

  • General Purpose, Triaxial Accelerometer with Temperature
  • Side Entry, M12 Connector
  • 100 mV/g ±10% and 10mV/°C Temperature Output
  • 0.8 to 15 kHz (48 to 900K cpm) Frequency Range
  • 1 Second Setting Time
  • -67 to +284 °F (-55 to 140 °C)
  • 1/4"-28 or M8x1.25 Captive Bolt
  • Lifetime Warranty
  • Download Datasheet (PDF)»

Ritec

Connection Technology Center, Inc. is proud to offer you the industry’s most comprehensive catalog of predictive maintenance hardware solutions, including accelerometers, wireless sensors, 4-20 mA sensors, speciality accelerometers, mounting hardware, cables, connectors, junction boxes, proximity probes, and much more. With decades of expertise, our industrial condition monitoring solutions are precision-engineered to help companies protect critical machinery, minimize unplanned downtime, and optimize performance.

All CTC Line Products

Ritec

Legacy Priced Sensors

  • 30US-100 - Only $89 (US list price)
  • 30US-500 - Only $89 (US list price)

4-20mA Sensors

  • Loop Power Sensors
  • Signal Conditioners
  • Hazardous Area Loop Power Sensors
  • Relay & Display Solutions

Dynamic Output Sensors

  • Industrial Accelerometers
  • Ultrasound Sensors
  • Hazardous Area Sensors

Complete Your Vibration Analysis System

  • Cables & Connectors
  • Mounting Hardware
  • Junction Boxes
  • VibeNavigator™ Data Collector Extension Poles

For Distributors

  • Distributor Display Kits

All CONNECT Products

Ritec
  • WS100 ConnectSens™ Wireless Sensor
  • WS200 ConnectSens™ Wireless Sensor
  • WS300 ConnectSens™ Wireless Sensor
  • ACCESS360 ConnectBridge™ Wireless Gateway
  • ConnectView™ Wireless Web App
  • Plug & Play Solutions for Reliability Professionals
  • Connect for Software Integrators

All PRO Line Products

Ritec
  • Proximity Probe Sets
  • Hazardous-Area Approved Proximity Probe Systems
  • Proximity Probe Mounting Hardware & Accessories
  • Proximity Probe Driver Enclosures
  • Hazardous-Area Approved Barriers & Enclosures

All TMP Line Products

Ritec
  • General Purpose Accelerometers
  • Cables & Connectors
  • Mounting Hardware
  • Power Supplies & Test Equipment
